Plastic discfilter

Advantages of disc filters:

The filter element composed of loose plastic discs is very easy to clean. When taking off the pack, adhering parts of dirt can be rinsed off under running water. The grooves are provided crosswise in the discs, thus enabling deep filtration. The filtrate can therefore be compared with the results of sand-bed filtration.

Advantages of UDI plastic disc filters:

UDI plastic disc filters have a robust design. The compressed plastic discs constitute a solid and strong filter element which is also resistant to high differential pressures. The filters are entirely made of plastic and are resistant to fertiliser-enriched feed water. The disc set is compressed by a stainless steel spring in the filter cover (¾ "-1½").

There are 7 models in the UDI plastic disc filter series:

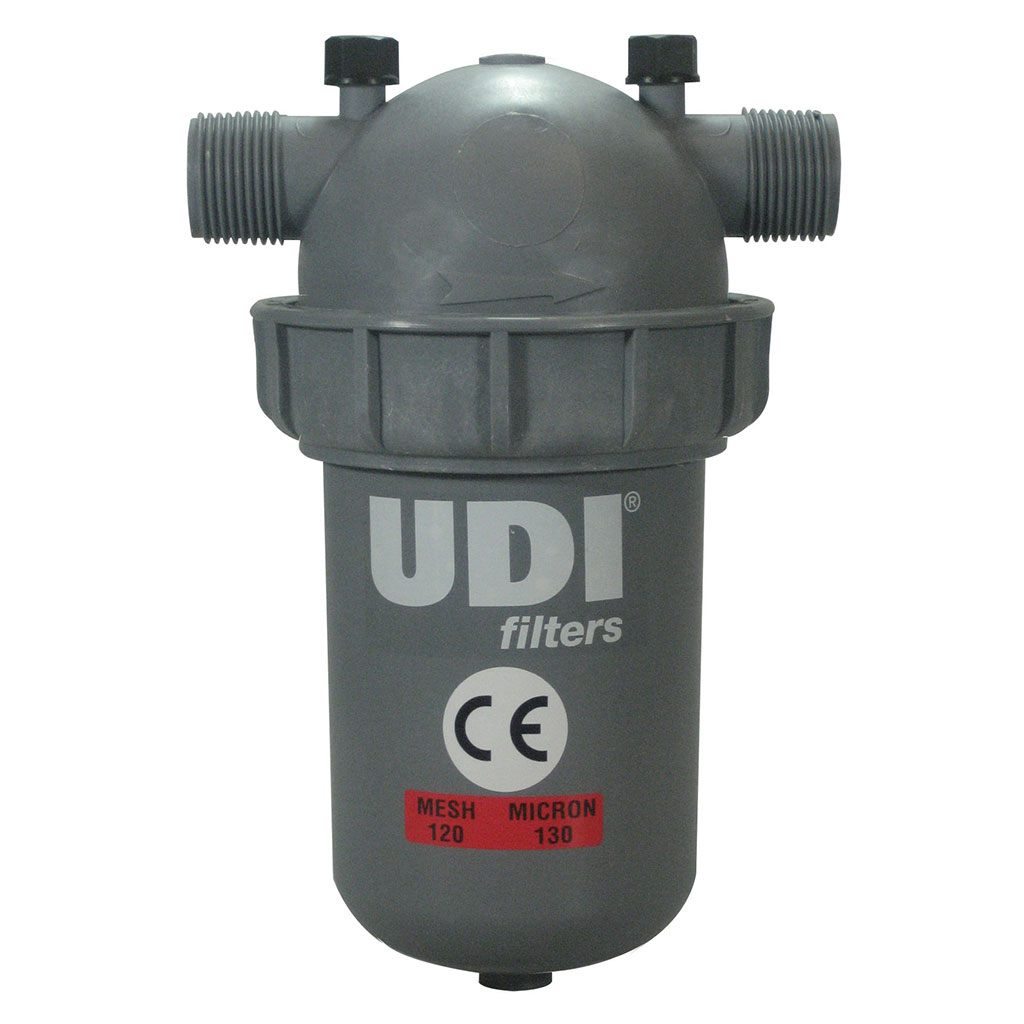

  • ¾”
  • 1”
  • 1” long

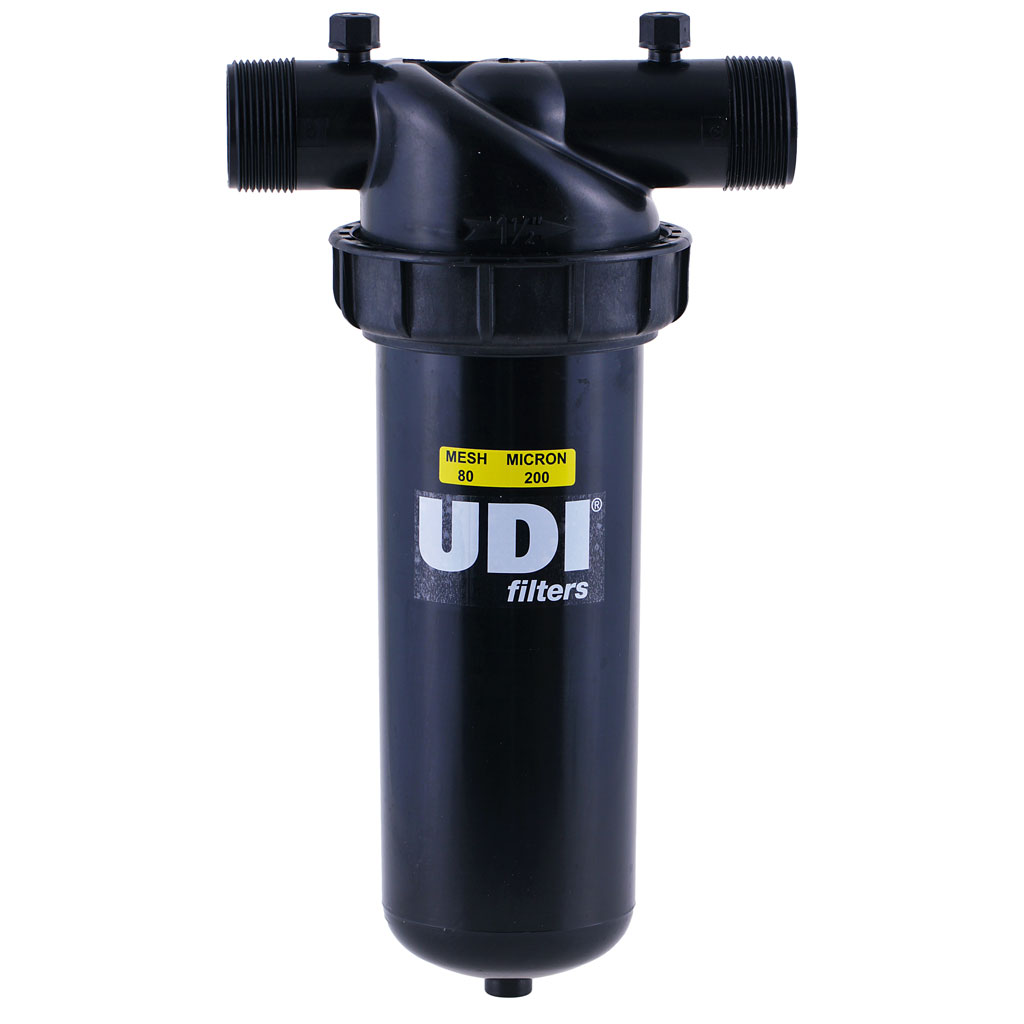

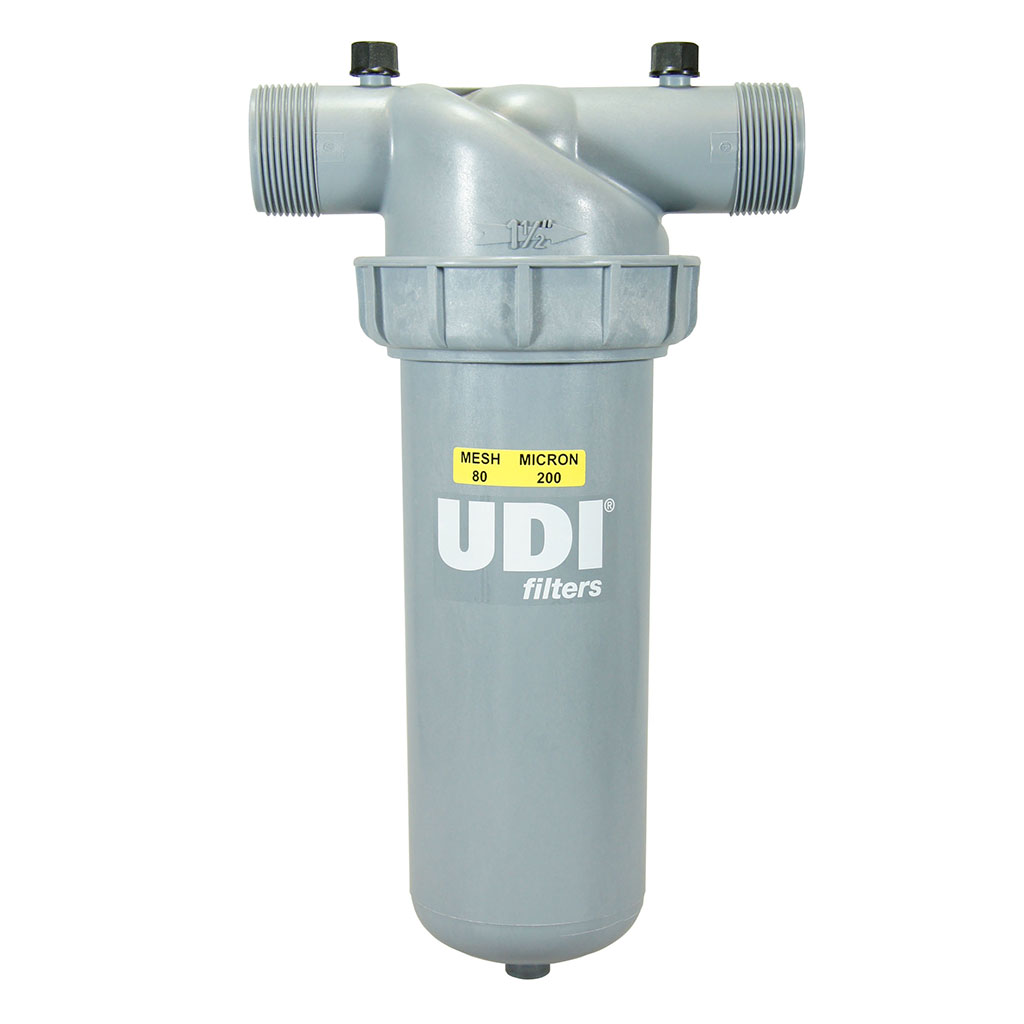

  • 1½”
  • 1½” long

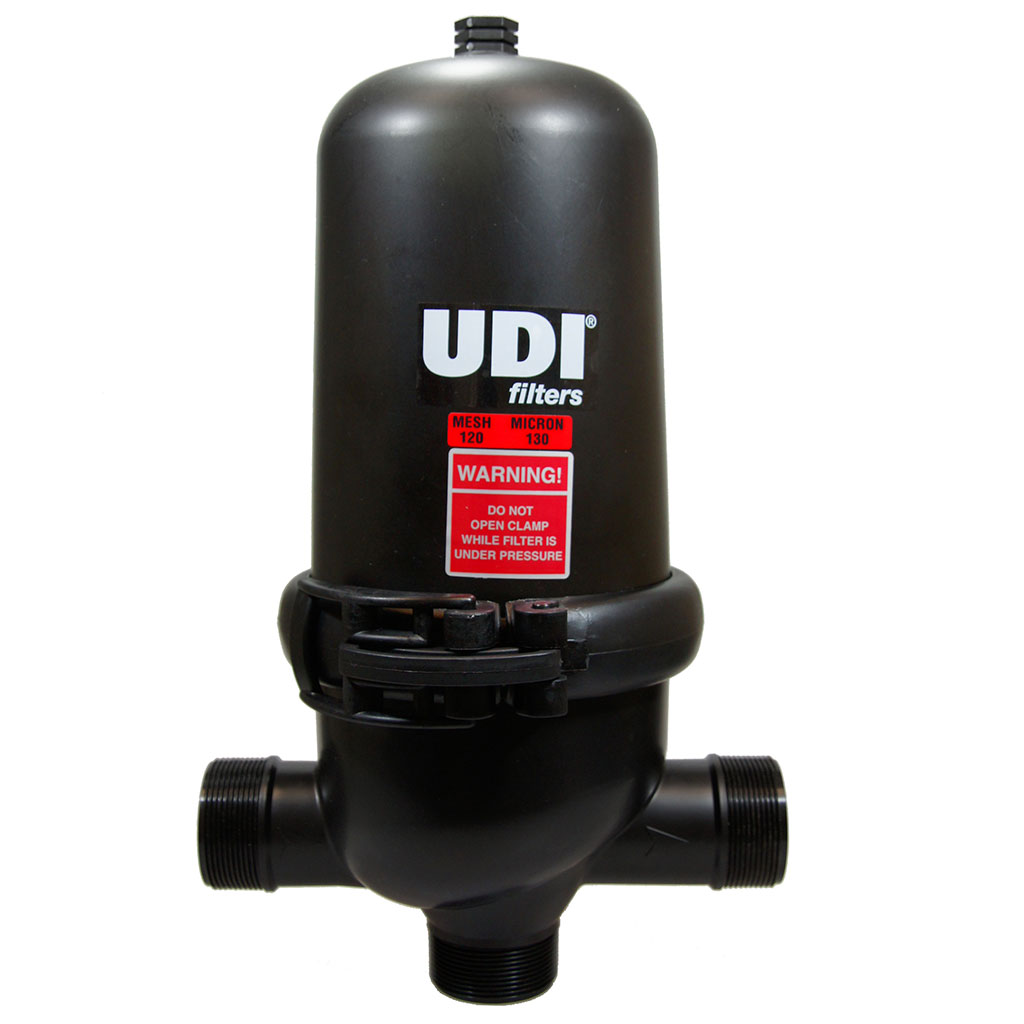

  • 2” dual
  • 2” dual lite

The disc filters are available in 6 filter perforations, with a colour coding. The ring pack is simple to remove. The filter can easily be opened manually, by:

  • unscrewing the filter cover (¾”).
  • loosening a nut which holds the filter cover on the filter body (1” and 1½”).
  • opening a clamp that holds the filter components clamped together (2").
