100 Series KY valve

KY valve

The Bermad 100 series are industrial grade nylon Y valves for high-flow systems. It’s diaphragm and guided plug provide a significantly ‘look through’ passage from end to end resulting in ultra-high flow capacity with minimal pressure loss. The KY-valve is engineered to meet rough service conditions with high thermal stress, vibration, chemical and cavitation resistance. With this design, Bermad is responding to the high standards for new designs and requirements of water systems.
The valve operates with the principle of the own-medium controlled gate valve provides accurate positioning and smooth regulation without causing water hammer. The simple design, durable on industrial level, with few moving parts, ensures easy servicing with long intervals.
The use of high-quality fibreglass-reinforced nylon, resistant to mechanical forces caused by pressure, makes the valve resistant to temperature differences and vibrations and not susceptible to corrosion.

Available connections:

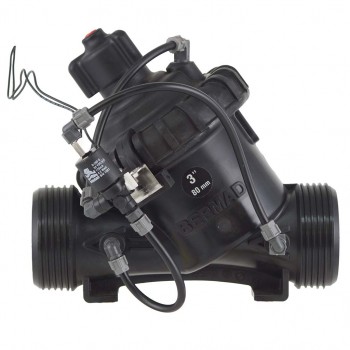

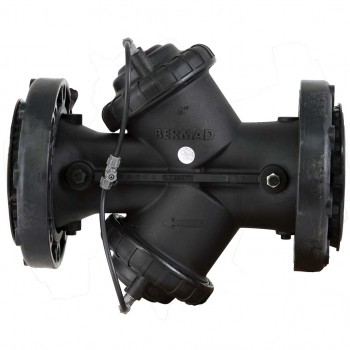

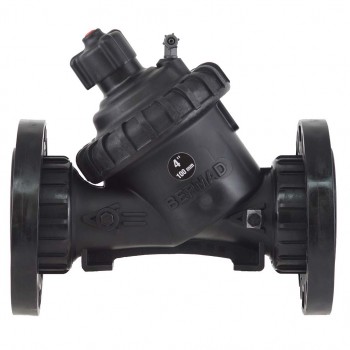

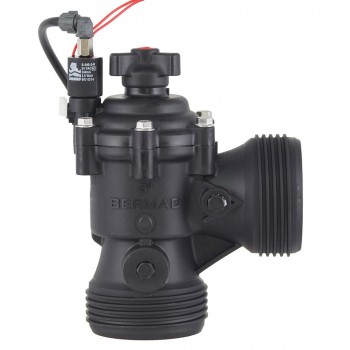

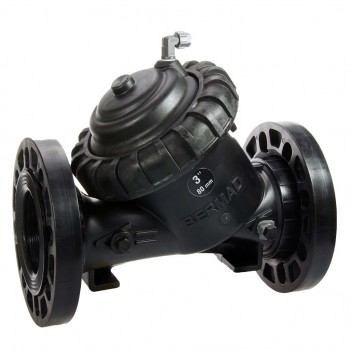

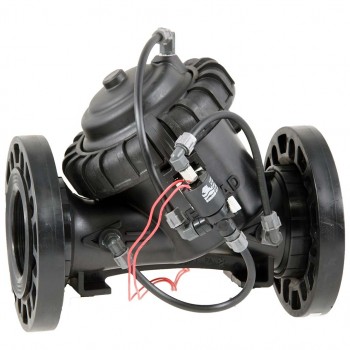

The 2", 2½", 3"R and 3" are designed with external thread and the option of PVC adapters and/or flanges, the 4", 4"L, 6"R and 6" are fitted with flanges.

The KY-valve can be used for the following functions:

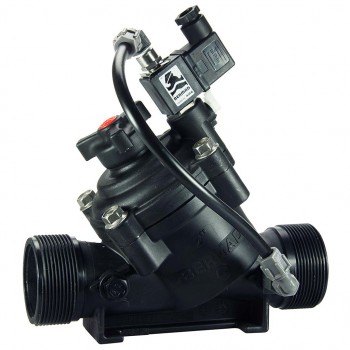

  • Hydraulic and / or elektrical control for open/close

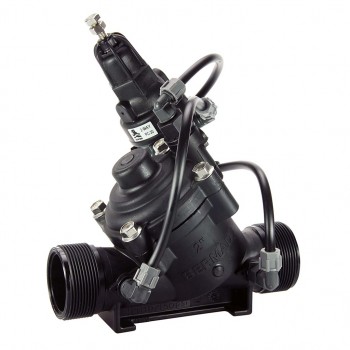

  • Pressure-reducing
  • Overflow- / high-pressure protection
  • Levelcontrol / float controlled valves
  • Combinations of functions are available.

Applications:

  • Automation
  • Pressure control
  • Pressure relief valve
  • Thermal pump installations
  • Filter flushing taps
  • Re-circulation systems

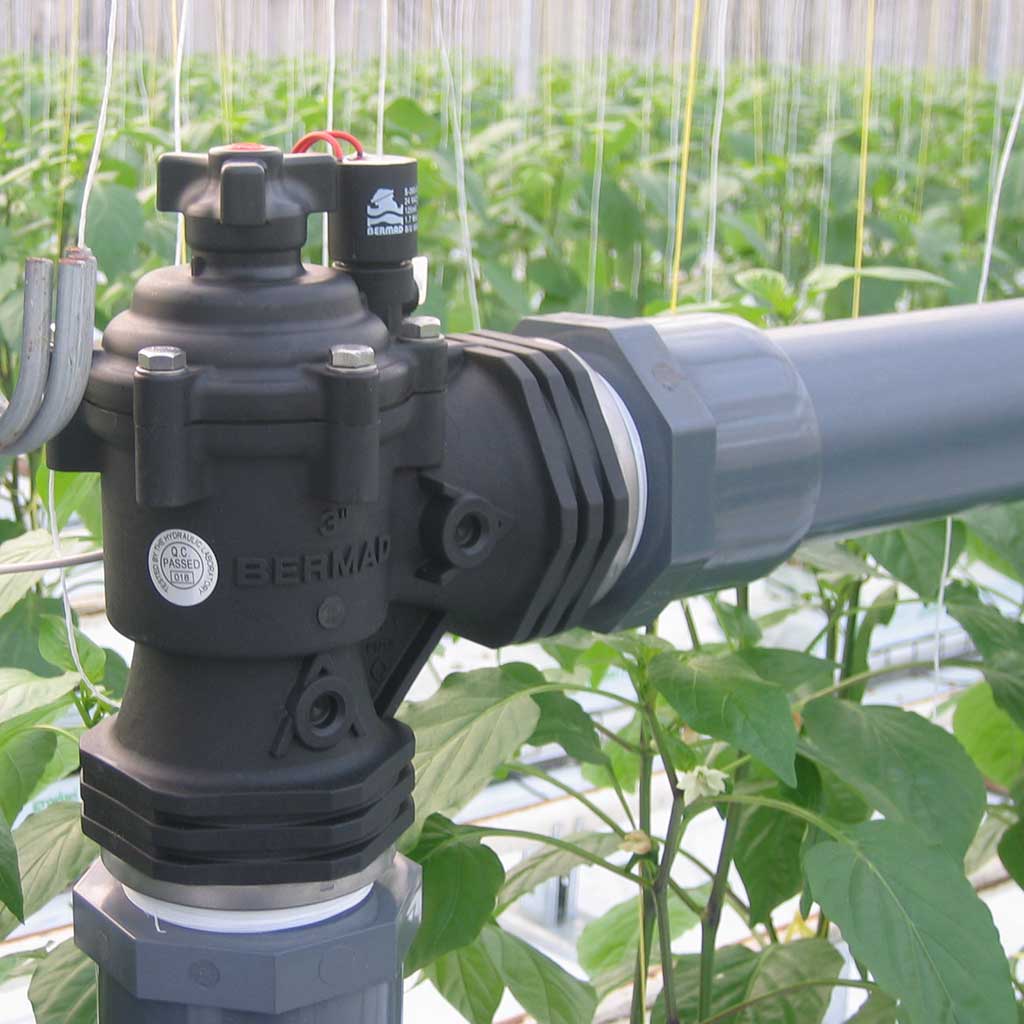

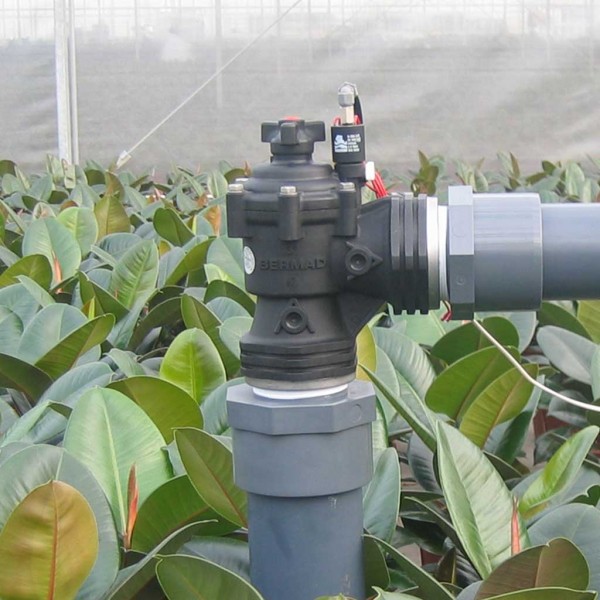

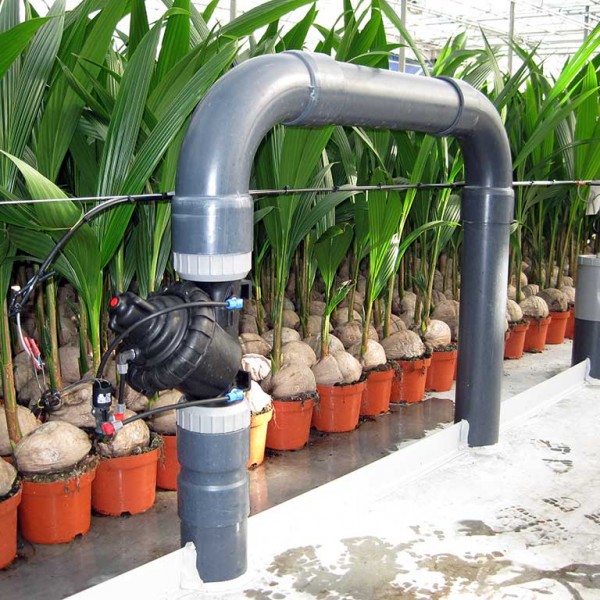

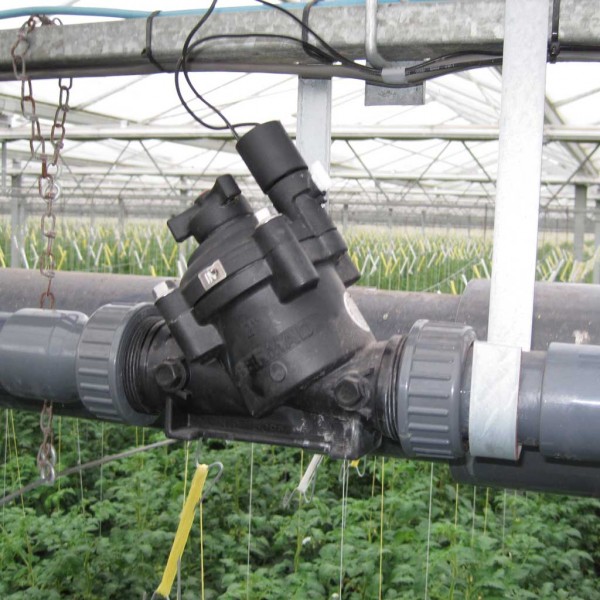

  • Irrigation systems
  • Sprinkler systems
  • Eb & flood systems
  • Substrate systems

Options:

  • Pneumatic control
  • N.O. electric closure
  • Combination of functions
  • Various solenoids
