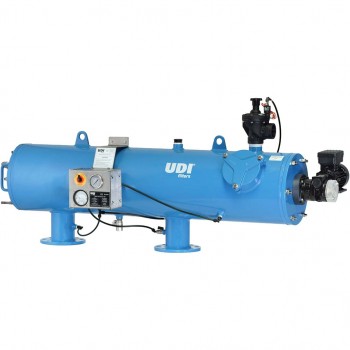

6Matic

Automatic Self-Cleaning Screen Filter:

The UDI 6Matic is the latest development in automatic self-cleaning screen filters. The filter offers an efficient solution for filtering water with fluctuating levels of dirt and varying flow rates in the widest range of applications.
The suction system with S.A. Nozzles is pressed against the stainless steel filter screen during the backflushing process due to a hydraulic pressure differential, thus ensuring perfect cleaning. The filtration process is not interrupted while backflushing, and a minimum of flushing water is required.

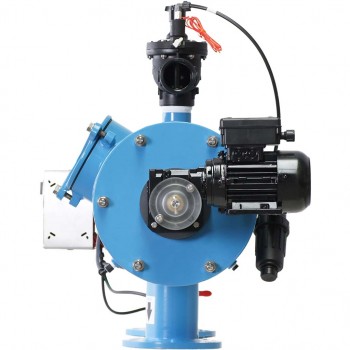

An electric motor and an internal automatic reversing mechanism move the
suction system along the entire filter element for perfect cleaning.

The filter can be applied for diverse applications due to the economical and efficient automatic self cleaning mechanism. This self cleaning mechanism includes the S.S. pressure compensation tube, differential pressure switch, S.S. filter screen and plastic flushing valve.

The UDI 6Matic is available in a wide range of sizes and filter perforations for a broad range of applications.
The filters are available in 2" to 20" (DN 50 mm - 500 mm) connections with flows up to 1600 m³/h. Filter perforations are available in 400 to 10 microns.

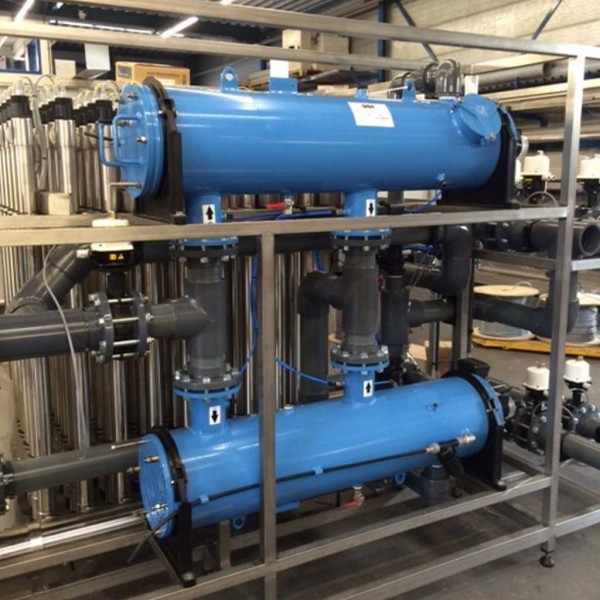

For high flow applications, numerous filters can be installed to form a filter unit of very high capacity.

Applications:

• Process water
• Cooling water processes
• Industrial wastewater
• Recirculation systems
• Irrigation systems
• Pre-filtration of disinfection equipment
