The UDI Galileo L automatic disc filter is composed of several G.K. filters whose filter element consists of plastic discs compressed on a variable holder. This unique flushing mechanism opens up the filter element during the flushing cycle...
-
The UDI 6Matic is the latest development in automatic self-cleaning screen filters.
The filter offers an efficient solution for filtering water with fluctuating levels of dirt and varying flow rates.... -
The UDI Galileo L Air Assist automatic disc filter is composed of several G.K. filters whose filter element consists of plastic discs compressed on a variable holder. This unique flushing mechanism opens up the filter element during the flushing cycle...
Plastic Discfilter
- 8U121D130.jpg

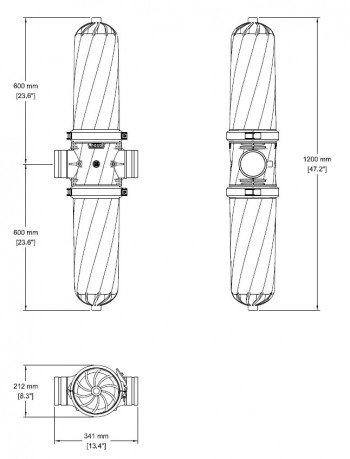

- 8u14.jpg

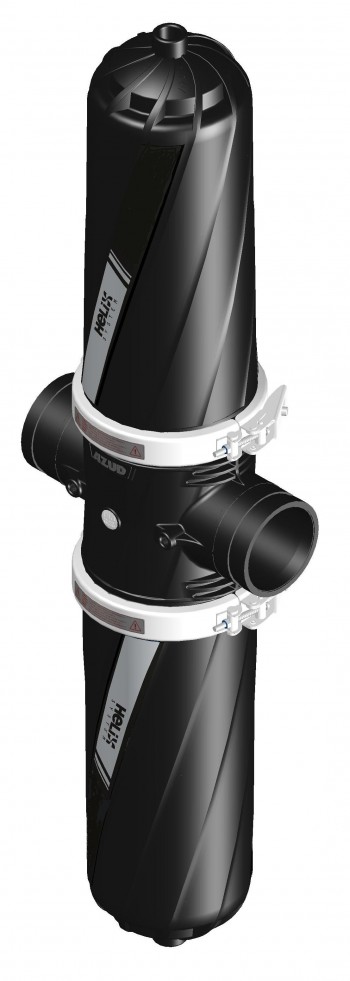

- 8u141.jpg
Advantages of disc filters:
The grooved discs form a solid and strong filteringelement, with depthfiltration and large filteringsurface. The Helix system enables a circulating flow around the discs, which makes the larger dirtparticles flock together and flow around the filteringelement. This flow stops the clogging the filterdiscs. The dirtparticles, which are trapped inbetween the discs, are easily removed with flowing water after removing the disc from the filter.The filters are entirely made of plastic and resistant to fertilizers enriched water. These filters are mainly used as security component in an installation, controlfilter or pre-filter. A large filteringsurface
(1699 cm²) 2"-3" BSP and (3398 cm²) 4”Fl en 6”Fl boxer.
The UDI plastic discfilter contains 4 models:
● 2" (BSP male)
● 3" (BSP male)
● 4" (Flange)
● 6" (Flange)
The discfilters are available with 8 filteringsizes. The discs are easily taken out of
the filter. All maintenance can be done by hand.
Applications:
● Where extra protection of your system is required
● Pre-filtration waterintake
● Recirculation Systems
● Postfiltration
