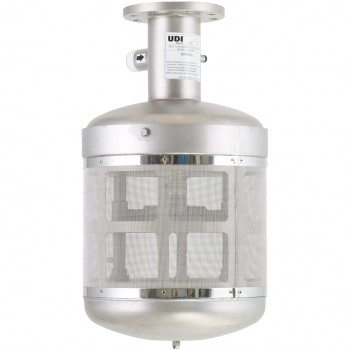

Self-cleaning suction basket

Advantages of UDI Self-cleaning suction baskets:

UDI self-cleaning suction baskets have been designed to be fitted at the start of the suction line, before the pump. The suction basket is suspended inside the water source (river, lake, etc.). This protects the pump against damage and/or blockage, preventing trouble, repairs, and energy loss.
The basket is kept clean during pump operation by continuously/intermittently rotating jets that blast the dirt off the basket. The flushing rotor is activated by the pump pressure via a return line on the delivery side of the pump, complete with filter, pressure gauge, and hand valve. The suction basket is of robust design to cause as little pressure loss as possible in the suction line.

Applications:

  • Where extra protection is required
  • Prevention of slag in suction lines
  • Protection of the pump
