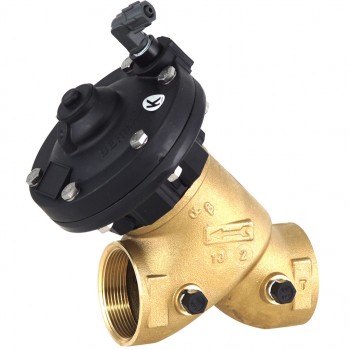

300 Series Y-valve

Y Valve

The Bermad Y valves are hydraulically operated valves equipped with a diaphragm which can be doubly actuated. The Bermad 300 series Y valves are available in the sizes 1½", 2" and 3". The double control chamber enables a very wide range of applications in the installation for open/closed and control functions. The Y design of this valve has a very low pressure loss at high capacity.

The valve closes by increasing pressure on the upper diaphragm chamber. The lower diaphragm chamber is usually set to no pressure or is connected to the downstream side for slower closing. This chamber can in addition be pressurised for diverse applications. Water hammer is prevented by gradually opening and closing the valve.

Models:

  • Hydraulic valve:
  • Electrical valve:
  • Pressure-reducing valve
  • Pressure-reducing / electric valve
  • Pressure-regulating valve / relief valve

Applications:

  • Irrigation systems
  • Recirculation systems
  • Cooling water circuits
  • Automated filtering systems
