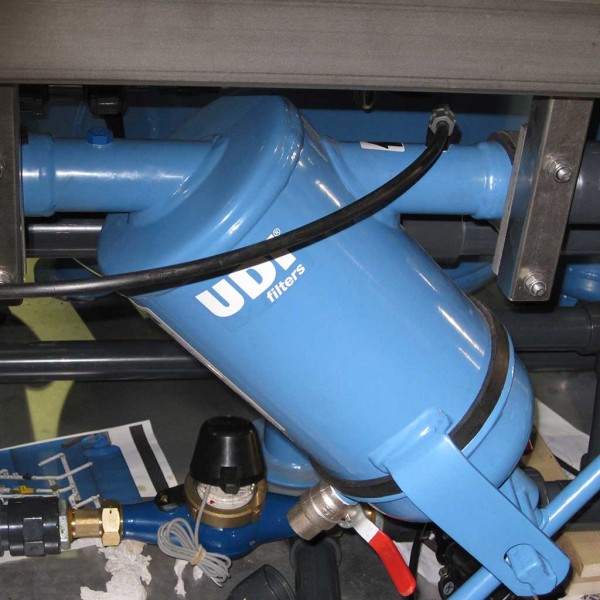

Circulation filters

This product is approaching 'end of life'. Its successor is the Circukon.

Advantages of circulation filtration:

Separation of the dirt from the water using flow energy. Large dirtdischarging capacity at minimal loss of flushing water. Well-adjusted inflow keeps the filter element clean.

Advantages of UDI circulation filters:

  • Strong steel with resistant plastic provide a filter which is suitable for many purposes. A high working pressure (max. 8 bar) poses no problem.
  • The UDI circulation filter has a PVC filter element with a stainless steel filter mesh of 75 to 800 microns.
  • By removing or adding plugs, the flow velocity can be optimised.
  • Discharging dirt can be automated in a simple manner.
  • To increase the dirt-discharging capacity, the filter can be applied crossflow.
  • All models can be modularly interconnected to form units of any shape and capacity, if necessary with a joint dirt-discharge tank.
  • A comprehensive range of fittings, connectors, and rapid couplings of the same make is available for assembling the units.
  • A stainless steel version of the filter is optionally available. The largest models are available with a pre-filter to capture large particles(stone trap).
