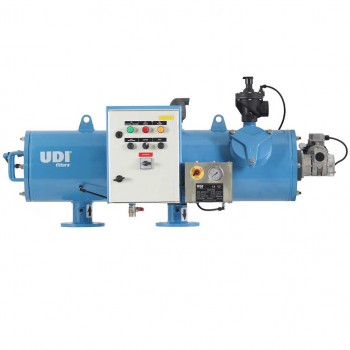

Automatic filter 863R

This product has been replaced by the UDI 6Matic Filter!

Automatically Self-Cleaning Electric Screen Filter:

The UDI 863R series is an automatic self-cleaning filter series that offers the most efficient solution to water filtering with varying dirt loads or fluctuating flow rates. The self-cleaning system draws the filter cake from the filter screen discharging the dirt without interrupting the filtration process. The entire filter surface is flushed within 20-30 seconds using minimum flushing water.

This unique design combines a suction scanner with Self Adjusting suction nozzles - to remove and discharge dirt from the filter surface – driven by an electric motor and an internal reversing direction screw which enables a continuous linear movement (back and forth) of the cleaning mechanism.

The UDI Automatic Self-cleaning Electric Screen Filters are available in a wide range of sizes and filter perforations for a broad range of applications. The filters are available in 2" to 14" (DN 50 mm - 350 mm) connections with flows up to 550 m³/h. Filter perforations are available in 400 to 10 microns.

Possibilities include adaptations to the water quality using, for instance, an enlarged filter surface, and an advanced flushing programme. For high flow applications, numerous filters can be installed to form a filter unit of very high capacity.

Applications:

  • Process water
  • Cooling water processes
  • Industrial wastewater
  • Recirculation systems
  • Irrigation systems
  • Pre-filtration of disinfection equipment
