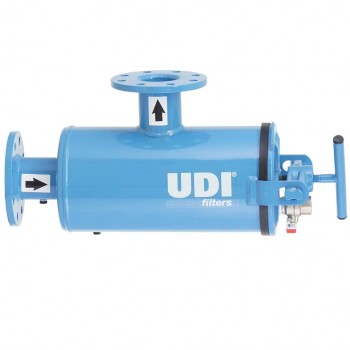

Control Filters 1900 Series

Advantages of control filters:

Control filters are used as a safety feature of an installation. All dirt particles above a certain size are captured.
Their purpose is twofold: to signal a problem in the upstream of the installation, while protecting the downstream of the installation.

Advantages of UDI control filters:

UDI control filters 1900 are available as in-line and angle filters.
The water is filtered from the inside to the outside. The dirt is captured on the inside of the filter element. Draining is possible through the valve mounted on the cover.
The 400 and 130-micron filter elements are equipped with reinforced stainless steel filter screen.

Coating:

In preparation for the coating, the filters are provided with a special layer of zinc phosphate. This treatment ensures proper adhesion of the coating, and protects against rusting-through from the inside.
Subsequently, the polyester coating is applied electrostatically, both internally and externally, before being furnace-hardened. The entire process involves 7 steps, and results in a perfect coating with a thickness of approximately 120 microns.
