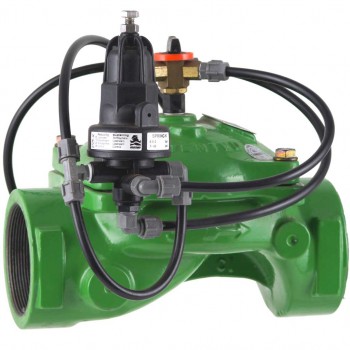

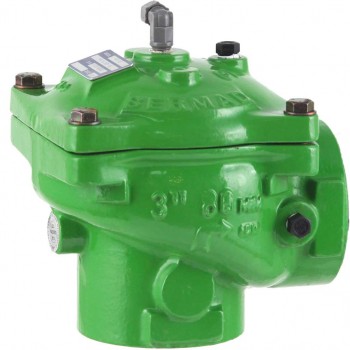

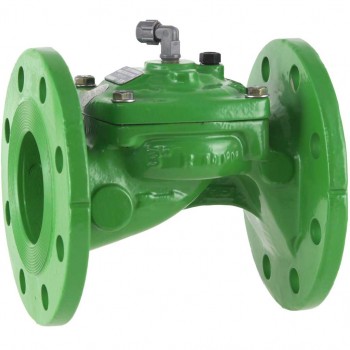

400 Series RAM valve

The 400 series diaphragm actuated hydraulically operated valve is at the leading edge of control valve design. It combines simple and reliable construction with superior performance, while at the same time being virtually free of the typical limitations associated with other single chambered valves. These automatic water control valves are designed for vertical or horizontal installation and are available in diameter sizes of 2" - 16" in a wide range of materials and end connections.

The design of the valve body includes a full bore seat with unobstructed flow path, free of any in-line ribs, supporting cage, or shafts. The unique hydro-dynamic globe design provides high flow capabilities with minimum head loss. The cover is removable via four fastening bolts for quick in-line inspection and service. The internal design of the 400 series valve is based on innovative technology using advanced rubber-based materials to achieve a solid, one piece elastomeric assembly including a flexible fabric reinforced diaphragm, vulcanized with a rugged radial seal disk. The diaphragm is carefully balanced and peripherally supported to avoid distortion and to protect the elastomer, resulting in long-life and controlled actuation even under harsh conditions.

Properties:

  • High flow
  • Exceptional pressure control stability
  • Prevents water hammer
  • Opens at low inlet pressure
  • Maintenance-friendly

Applications:

  • Irrigation systems
  • Industrial
  • Automation
  • Recirculation systems
  • Pressure control
  • Pressure relief valve
  • Level control
  • Fire protection (UL-listed, FM-approved)

Options:

  • Flowstem
  • Various solenoids
  • N.O. version-electrically closing
  • Combination of functions
  • Valve position indicator
