Screen filters 1000 and 2000 series

Advantages of screen filters:

Screen filters are often used as a safety feature of an installation. All dirt particles above a certain size are captured. Their purpose is twofold: to signal a problem in the upstream part of the installation, while protecting the downstream part of the installation.

Advantages of UDI screen filters:

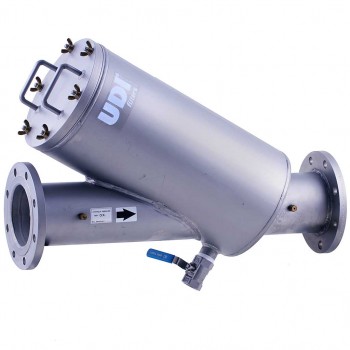

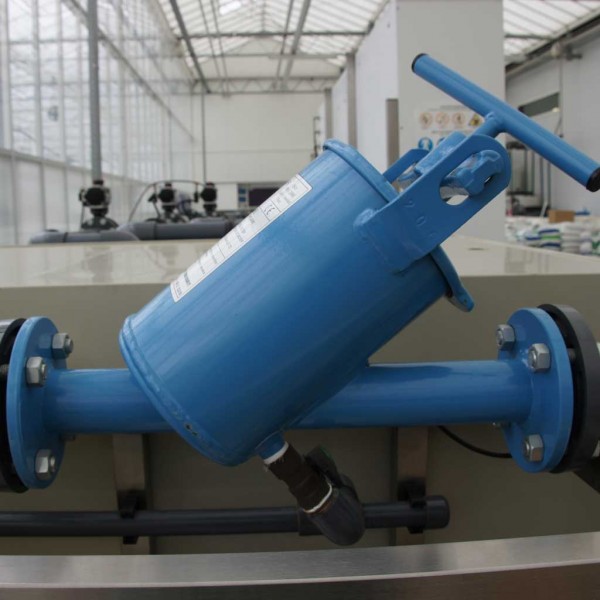

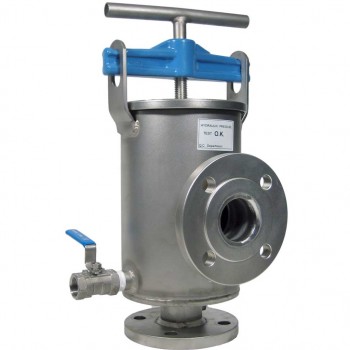

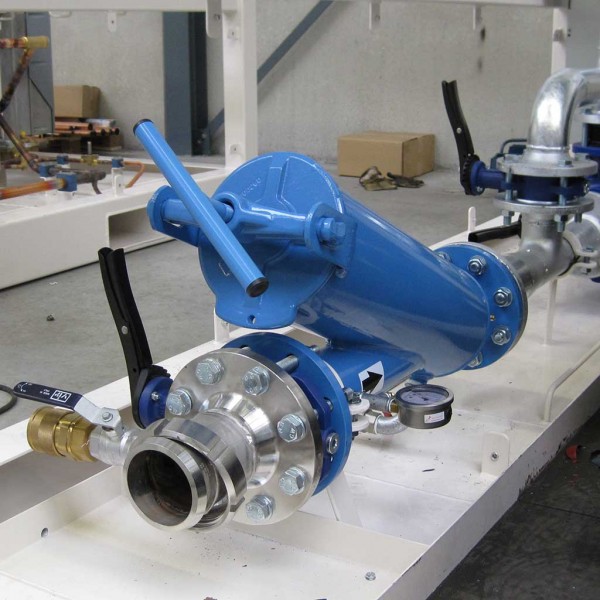

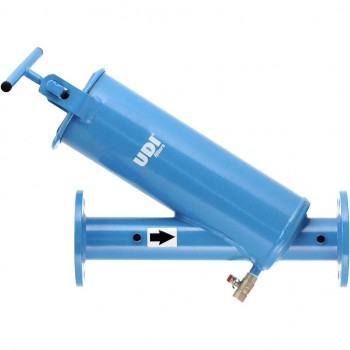

UDI screen filters are available as in-line and as angled filters. This safety can be further increased by using a second inner filter. The water is filtered from the outside to the inside. The filter cake is located on the outside of the filter element, and can easily be removed by hand.
The inner elements are equipped with a stainless-steel filter mesh, available in various perforations. The effective filtering area of the screen is 32-47%, depending on perforation applied.

Coating:

In preparation for the coating, the filters are provided with a special layer of zinc phosphate. this treatment ensures proper adhesion of the coating, and protects against rusting-through from the inside. Subesequently, the polyester coating is applied electrostatically, both internally and externally, before being furnace-hardened. The entire process involves 7 steps, and results in a perfect coating with a thickness of apporximately 120 microns.

Applications:

  • All water intakes
  • Cooling water systems
  • Recirculation systems
  • Water transport systems
  • After media filters
  • Before distribution systems
  • Before sprinkler systems
