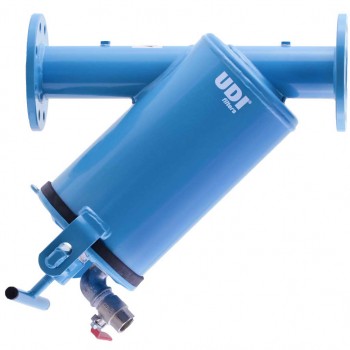

Circukon

Advantages of circulation filtration:

Separation of the dirt from the water using flow energy. Large dirtdischarging capacity at minimal loss of flushing water. Well-adjusted inflow keeps the filter element clean.

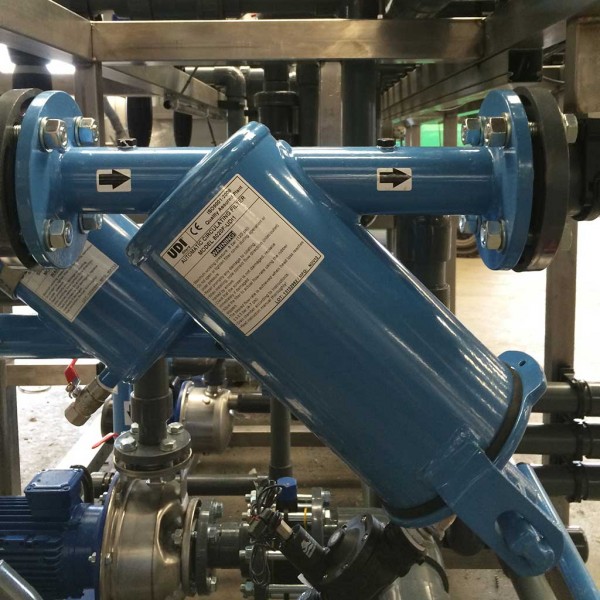

Advantages of UDI Circukon filters:

Strong steel with resistant plastic provide a filter which is suitable for many purposes. A high working pressure (max. 8 bar) is no problem. The UDI Circukon filter has a PVC filter element with a stainless steel filter mesh of 75 to 800 microns. Dirt is continuously being collected during operation, thus avoiding an increase in the differential pressure. This is achieved by using a specially designed whirl plate with four obliquely drilled-in holes. By removing or adding plugs, the flow velocity can be optimised. Due to the large difference in flow rate per hole, the filters are suitable for many applications. The entire filter area is optimally used, due to a uniquely designed spiral groove under the filter mesh. The dirt collection chamber is a component of the filter element. The conical inlet prevents backflow of the dirt. The filter cover is light and easy to handle. Discharging dirt can be automated in a simple manner. To increase the dirt-discharging capacity, the filter can be applied crossflow. All models can be modularly interconnected to form units of any shape and capacity, if necessary with a joint dirt-discharge tank. A comprehensive range of fittings, connectors, and rapid couplings of the same make is available for assembling the units. A stainless steel version of the filter is optionally available
